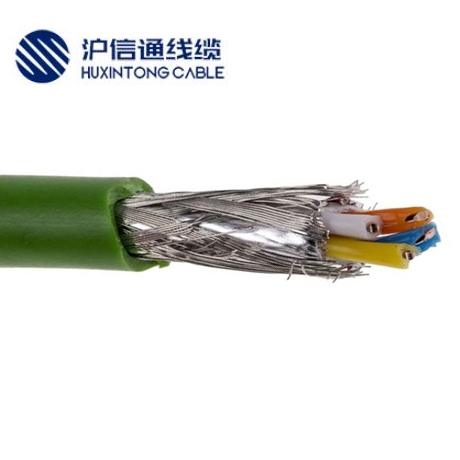

HXT Profinet TYPE B型工业以太网电缆（拖链布线）：专为PROFINET协议设计，用于广泛的工业以太网场合应用，如机器，设备，仪器和控制柜等的布线，性能符合CAT5e，适用于拖链运动或频繁移动的场合。

HXT PROFINET type C Industrial Ethernet cable : specially designed for PROFINET protocol, it is used in a wide range of industrial Ethernet Applications, such as the wiring of machines, equipment, instruments and control cabinets. Its performance conforms to CAT5e and is suitable for the field of drag chain movement or frequent movement.

• 导体

绞合镀锡铜导体

• 绝缘

聚乙烯

• 屏蔽

铝箔包裹加镀锡铜编织

• 外护套

聚氨酯

• 护套标识

绿色护套



Structure

• Conductor

  Solid bare copper conductor

• Insulation

  polyethylene

• Shield

  Aluminum foil wrapped and tinned copper braided

• Sheath

  PUR

• Sheath color

  Green

• 运行温度

  PUR：-40 ℃~ +90℃

• 拖链运行次数

  ≥500万次

• 特性阻抗

  100±15Ω@1MHz

• 阻燃标准

  IEC60332-1

• 特性

  阻燃性满足IEC60332-1要求，具有极好的抗外部电磁干扰能力

  PUR护套具有耐油，耐磨，耐酸碱腐蚀，耐水解的特性

Technical Parameters

• Operating temperature

PVC：-20 ℃~ +70℃

PUR：-40 ℃~ +90℃

• Drag chain operation times

≥ 5 million times

• Characteristic impedance

100 ± 15 Ω @ 1MHz

• Flame retardant standard

IEC60332-1

• characteristic

Flame retardant meets the requirements of iec60332-1 and has excellent anti external electromagnetic interference ability

Pur sheath has the characteristics of oil resistance, wear resistance, acid and alkali corrosion resistance and hydrolysis resistance
