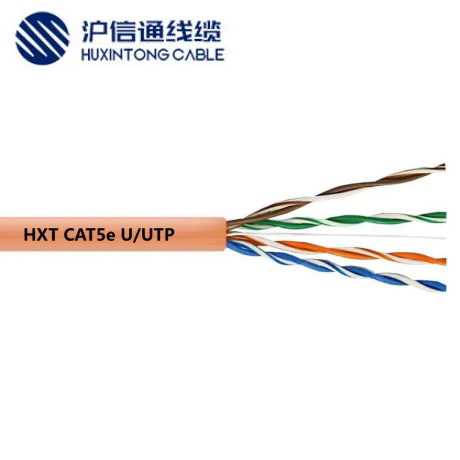

HXT CAT5e U/UTP超五类网线：广泛应用于大于90米且不超过100米的楼宇固定布线场合，符合ISO / IEC 11801 和 EN 50173 标准。
HXT CAT5e U / UTP super class V network cable: widely used in fixed wiring occasions in buildings greater than 90m and less than 100m, in line with ISO / IEC 11801 and en 50173 standards.
导体
U/UTP 4x2xAWG 24/1 PVC
导体直径
0.5mm±0.004/1 7/0.19mm±0.004
绝缘
聚乙烯
芯线颜色
白蓝色/蓝色，白橙色/橙色，白绿色/绿色，白棕色/棕色
总屏蔽1
无
总屏蔽2
无
外护套
PVC
总外径
4.9 mm±0.3
外护套颜色
灰色 （可根据客户要求定制）
Structure
Conductor
U/UTP 4x2xAWG 24/1 PVC
Conductor diameter
0.5mm±0.004/1 7/0.19mm±0.004
Insulation
PE
Core identification
whbu/bu, whog/og, whgn/gn, whbn/bn
Screen 1 over stranding
None
Screen 2 over stranding
None
Sheath
PVC
Outer diameter
4.9 mm±0.3
Outer sheath colour
Grey，Customized according to customer requirements
特性阻抗
100 Ohm ± 15 Ohm / 1-100 MHz
100 Ohm ± 20 Ohm / 101-155 MHz
回路电阻
190 Ohm/km
温度范围
-15℃ 至+70℃
阻燃标准
IEC 60332-1-2
生产标准
符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, Category 5e
Technical Parameters
characteristic impedance
100 Ohm ± 15 Ohm / 1-100 MHz
100 Ohm ± 20 Ohm / 101-155 MHz
Loop resistance
190 Ohm/km
Temperature range
-15 ℃ to + 70 ℃
Flame retardant standard
IEC 60332-1-2
Production standard
In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, category 5e
