HXT Profibus ET200X 拖链总线：Profibus ET200X+Ecofast混合电缆专为在电缆托架中连续移动而设计。混合结构集成了一根电缆中靠近Profibus的电源。ET200X型提供三根0.75mm²的电源导线，而Ecofast 4型具有1.5mm²的电源导线，有更大的载流能力。

HXT PROFIBUS et200x drag chain bus: PROFIBUS et200x+ecofast hybrid cable is designed for continuous movement in cable tray. The hybrid structure integrates the power supply close to PROFIBUS in one cable. Et200x provides three 0.75mm ² And ecofast 4 has 1.5mm ² The power supply wire has greater current carrying capacity.

• 导体1

  裸铜（AWG 24/19）

• 导体2

  裸铜 (AWG 18/42)

• 绝缘1

  发泡PE

• 绝缘2

  PE

• 芯线颜色1

  红色、绿色

• 芯线颜色2

  黑色、蓝色、黄绿色


• 屏蔽材质1

  铝箔+镀锡铜编织屏蔽

• 总屏蔽

  铝箔

• 外护套

  PUR

• 外护套颜色

  绿色 （可根据客户要求定制）

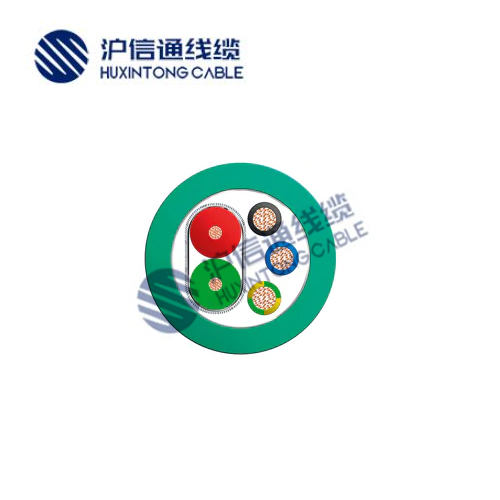

Structure

• Conductor 1

  Bare copper (AWG 24/19)

• Conductor 2

  Bare copper (AWG 18/42)

• Insulation 1

  Foamed PE

• Insulation 2

  PE

• Core color 1

  Red, green

• Core color 2

  Black, blue, yellow green

• Shielding material 1

  Aluminum foil + tinned copper braided shield

• Total shielding

  aluminum foil

• Outer sheath

  PUR

• Color of outer sheath

  Green (customized according to customer requirements)

• 特性阻抗

  150 Ohm ± 10 %

• 互电容

  30 nF/km nom.

• 温度范围

   -40°C ~90°C

• 阻燃标准

  FT2

• 外径

  1x2x0.65 mm² + 3x1x0.75 mm²：7.9±0.3mm

Technical Parameters

• characteristic impedance

  150 Ohm ± 10 %

• Mutual capacitance

  30 nF/km nom.

• temperature range

   -40°C ~90°C

• Flame retardant standard

  FT2

• external diameter

  1x2x0.65 mm ²+ 3x1x0.75 mm²：7.9±0.3mm
