HXT Profibus SK拖链数据总线电缆：与传统类型一样，这些Profibus SK电缆适用于小区和现场区域。这种新系统的优点是可以将电缆快速连接到相应的插头上。这种类型的处理也可以避免错误,也适用于拖链（绞合）。

HXT PROFIBUS SK towline data bus cables: as with traditional types, these PROFIBUS SK cables are suitable for residential and field areas. The advantage of this new system is that the cable can be quickly connected to the corresponding plug. This type of processing can also avoid errors. The above type applies to drag chains (stranding).

• 导体

  裸铜，1*2*0.64mm

• 绝缘

  发泡PE

• 芯线颜色

  红色、绿色

• 屏蔽材质1

  铝箔

• 屏蔽材质2

  镀锡铜编织屏蔽

• 外护套

  PUR

• 外护套颜色

  紫色 （可根据客户要求定制）

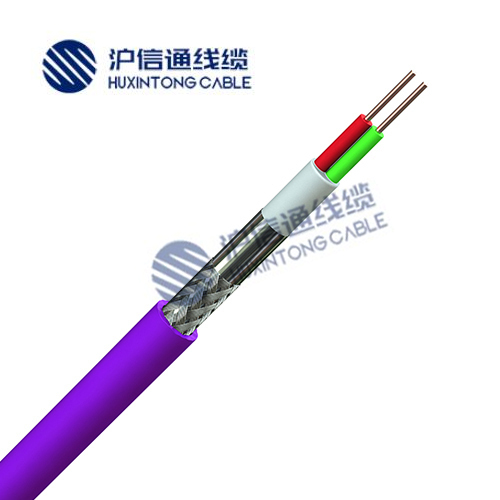

Structure

• conductor

  Bare copper, 1*2*0.64mm

• Insulation

  Foamed PE

• Core wire color

  Red, green

• Shielding material 1

  aluminum foil

• Shielding material 2

  Tinned copper braided shield

• Outer sheath

  PUR

• Color of outer sheath

  Purple (customized according to customer requirements)

• 特性阻抗

  150 Ohm ± 10 %

• 互电容

  35 nF/km nom.

• 温度范围

   -40°C ~90°C

• 工作电压

  300V

• 外径

  8.0±0.4mm

Technical Parameters

• characteristic impedance

  150 Ohm ± 10 %

• Mutual capacitance

  35 nF/km nom.

• temperature range

  -40°C ~90°C

• working voltage

  300V

• external diameter

  8.0±0.4mm
