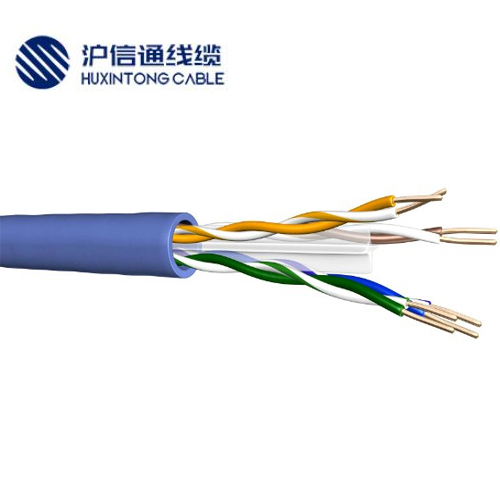

HXT CAT6Ae U/UTP超六类网线
    发布时间: 2022-01-04 16:12

HXT CAT6Ae U/UTP超六类网线:适用于机器、工具、设备、装置、电器和控制柜布线系统,具有良好的抗电磁干扰特性


HXT CAT6Ae U/UTP超六类网线:适用于机器、工具、设备、装置、电器和控制柜布线系统,具有良好的抗电磁干扰特性。

HXT cat6ae U / UTP Cat 6 network cable:applicable to the wiring system of machines, tools, equipment, devices, electrical appliances and control cabinets, with good anti electromagnetic interference characteristics.



  • 导体

    实心裸铜线

  • 绝缘

    聚乙烯

  • 芯线颜色

    1-白蓝色/蓝色,2-白橙色/橙色,3-白绿色/绿色,4-白棕色/棕色

  • 屏蔽材质

    无总体屏蔽和线对屏蔽,2条芯线对绞,4对双绞线中央交叉

  • 外护套

    聚氯乙烯

  • 外径

    6.5mm±0.3

  • 外护套颜色

    灰色 (可根据客户要求定制)


Structure

  •  Conductor

    Solid OFC annealed bare copper wire

  • Insulation

    PE

  • Core identification

    1-white-blue/blue, 2 –white-orange/orange, 3 –white-green/green, 4 –white-brown/brown

  • Shielding material

    There is no overall shielding and wire pair shielding, 2 core wires are twisted in pairs, and 4 pairs of twisted pairs are crossed in the center

  • Sheath

    PVC

  • Outer Diameter

    6.5mm±0.3

  • Outer sheath colour

    Grey,Customized according to customer requirements


  • 特性阻抗

    100 ± 15 Ω

  • 绝缘电阻

    ≥5GΩ.km

  • 温度范围

    -15℃ 至+70℃

  • 阻燃标准

    IEC 60332-1-2

  • 生产标准

    符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, IEC61156-5


Technical Parameters

  • characteristic impedance

    100 ± 15 Ω

  • insulation resistance

    ≥5GΩ.km

  • Temperature range

    -15 ℃ to + 70 ℃

  • Flame retardant standard

    IEC 60332-1-2

  • Production standard

    In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, IEC61156-5
