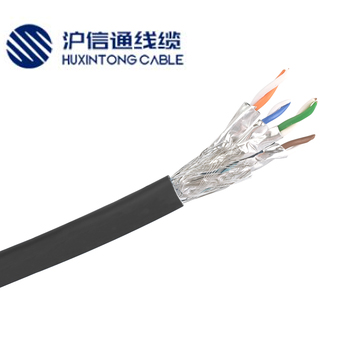

HXT S/FTP-TPU拖链系统用网线可用于工业第二级和第三级布线，符合EN 50173-3和IEC 24702标准，适用于机器、工具、设备、装置、电器和控制柜布线系统。可敷设于干燥或潮湿的室内，具有良好的抗电磁干扰特性，可用于恶劣工业环境中的工业以太网。

HXT S/FTP-TPU network cable for the drag chain system can be used for industrial level 2 and level 3 wiring, comply with en 50173-3 and IEC 24702 standards, and is suitable for the wiring system of machines, tools, equipment, devices, electrical appliances and control cabinets. It can be applied in a dry or humid room with good anti electromagnetic interference characteristics. It can be used for industrial Ethernet in harsh industrial environment.

• 导体

  裸铜线

• 绝缘

  热塑性绝缘料

• 芯线颜色

  1-白蓝色/蓝色，2-白橙色/橙色，3-白绿色/绿色，4-白棕色/棕色

• 屏蔽材质

  镀锡铜编织屏蔽


• 外护套

  聚氨酯（耐油，耐磨损，符合ROHS指令，阻燃）

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  Bare copper conductor

• Insulation

  High-quality thermoplastic insulatio

• Core identification

  1-white-blue/blue, 2 –white-orange/orange, 3 –white-green/green, 4 –white-brown/brown

• Shielding material

  Aluminum foil shielding

• Sheath

  PUR(oil resistant, abrasion resistant, RoHS compliant, flame retardant)

• Outer sheath colour

  Grey，Customized according to customer requirements

• 特性阻抗

  100 ± 15 Ω

• 绝缘电阻

  ≥5GΩ.km

• 温度范围

  -40℃ 至+90℃

• 阻燃标准

  IEC 60332-1-2

• 生产标准

  符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, IEC61156-5




Technical Parameters

• characteristic impedance

  100 ± 15 Ω

• insulation resistance

  ≥5GΩ.km

• Temperature range

  -40 ℃ to + 90 ℃

• Flame retardant standard

  IEC 60332-1-2

• Production standard

  In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, IEC61156-5
