HXT RS485 communication special cable (fixed wiring): it conforms to RS-485 communication protocol, is suitable for complex industrial automation control network communication and building automation network communication, and is suitable for fixed applications and occasional mobile.
导体
裸铜丝绞合导体
绝缘
优质发泡聚乙烯绝缘料
屏蔽
铝箔屏蔽加镀锡铜编织
外护套
聚氯乙烯
护套标识
黑色护套

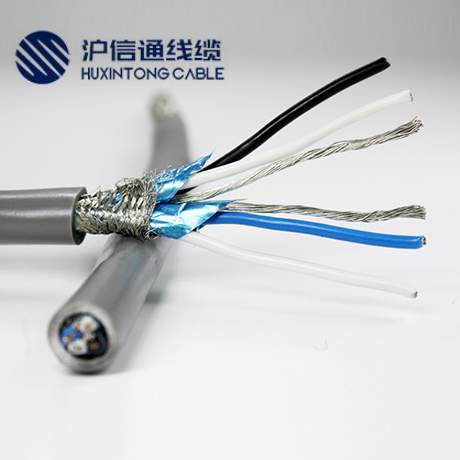

Structure
Conductor
Stranded bare copper wire conductors
Insulation
High-quality imported foamed polyethylene
Shield
Aluminum foil shielding and tinned copper braiding
Sheath
PVC
Sheath color
Black
额定电压
300V
运行温度
-20 ℃~ +70℃
弯曲半径
15×电缆直径Ф
特性阻抗
120±15Ω@1MHz
阻燃标准
IEC60332-1
特性
具有较好的抗外部电磁干扰能力，稳定的传输性能，适用于固定安装或偶尔移动
Technical Parameters
Nominal voltage
300V
Operating temperature
-40 ℃~ +90℃
Minimum bending radius
10 x cable diameter Ø
Characteristic impedance
110 ± 15 Ω @ 1MHz
Flame retardant standard
IEC60332-1
characteristic
It has good anti external electromagnetic interference ability and stable transmission performance. It is suitable for fixed installation or occasional movement
