HXT IBS612/IBS614/IBS617 PVC Interbus-S 电缆(室内室外安装):Interbus 是被研发用于自动化技术的传感器/执行器的电缆。这个技术上成熟的系统已经标准化并且符合 IEC 61158 和61784。主要应用领域不同型号的电缆类型定义为远程总线电缆,安装远程总线电缆, S-line 和 loop。

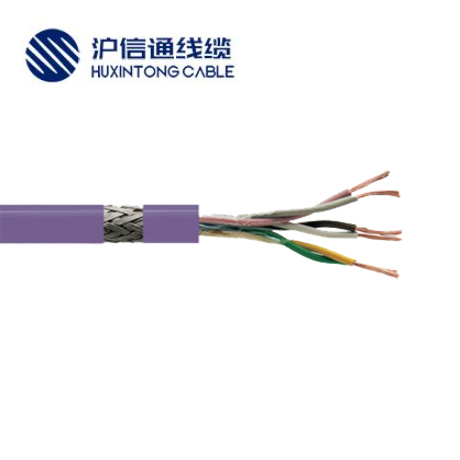

HXT ibs612 / ibs614 / ibs617 PVC interbus-s cable (indoor and outdoor installation): INTERBUS is the cable of sensor / actuator developed for automation technology. This technically mature system has been standardized and complies with IEC 61158 and 61784. The cable types of different models in the main application fields are defined as remote bus cable, installation of remote bus cable, S-line and loop.

• 导体

  绞合裸铜导体

• 绝缘

  聚乙烯

• 屏蔽

  镀锡铜编织

• 外护套

  聚氯乙烯

• 护套标识

  黑色护套

Structure

• Conductor

  Stranded bare copper conductor

• Insulation

  polyethylene

• Shield

  tinned copper braided

• Sheath

  PVC

• Sheath color

  Black


• 工作电压

  300/300V

• 运行温度

  -30 ℃~ +70℃

• 特性阻抗

  100±15Ω@1MHz

• 阻燃标准

  IEC60332-1-2

• 环保要求

  ROHS

• 特性

  阻燃性满足IEC60332-1-2要求，具有极好的抗外部电磁干扰能力

Technical Parameters

• working voltage

  300/300V

• Operating temperature

  -30 ℃~ +70℃

• Characteristic impedance

  100 ± 15 Ω @ 1MHz

• Flame retardant standard

  IEC60332-1-2

• Environmental requirements

  ROHS

• characteristic

  Flame retardant meets the requirements of iec60332-1 and has excellent anti external electromagnetic interference ability
