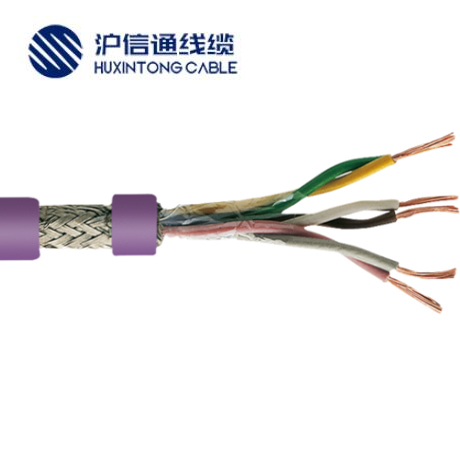

HXT 拖链专用S IBS 618 PUR Interbus-S 电缆:根据DIN VDE 0472第815部分和IEC 60754-1，经UL批准的电缆轨道用PUR Interbus-S电缆为无卤电缆。它用于运输和储存技术以及生产工程。

HXT Special for drag chain s IBS 618 pur interbus-s cable (for drag chain):This PUR Interbus-S cable for cable tracks with UL approval is halogen-free according to DIN VDE 0472 part 815 and IEC 60754-1. It is used in transport and storage technology and production engineering.

• 导体

  绞合裸铜导体

• 绝缘

  聚乙烯

• 屏蔽

  镀锡铜编织

• 外护套

  聚氨酯

• 护套标识

  黑色护套

Structure

• Conductor

  Stranded bare copper conductor

• Insulation

  polyethylene

• Shield

  tinned copper braided

• Sheath

  PUR

• Sheath color

  Black


• 工作电压

  300/300V

• 运行温度

  -40 ℃~ +90℃

• 特性阻抗

  100±15Ω@1MHz

• 阻燃标准

  IEC60332-1-2

• 环保要求

  ROHS

• 弯曲特性

  ≥1000万次

• 特性

  阻燃性满足IEC60332-1-2要求，满足IEC 60754-1，具有极好的抗外部电磁干扰能力

  PUR外护套具有无卤的特性，耐油，耐酸碱腐蚀

• Technical Parameters

• working voltage

  300/300V

• Operating temperature

  -40 ℃~ +90℃

• Characteristic impedance

  100 ± 15 Ω @ 1MHz

• Flame retardant standard

  IEC60332-1-2

• Environmental requirements

  ROHS

• Bending characteristics

  ≥min. 1.000.000 single bendings

• characteristic

  The flame retardancy meets the requirements of iec60332-1-2 and IEC 60754-1, and has excellent anti external electromagnetic interference ability

  Pur outer sheath has halogen-free characteristics, oil resistance, acid and alkali corrosion resistance
