HXT PUR非屏蔽工业传感器电缆：用于协助传感器对生产过程中的数据进行监视和控制，满足实际生产需求，是实现自动检测和自动控制的首要环节，产品可应用在工业生产，环境保护，资源调查等领域，适用于高柔性应用。

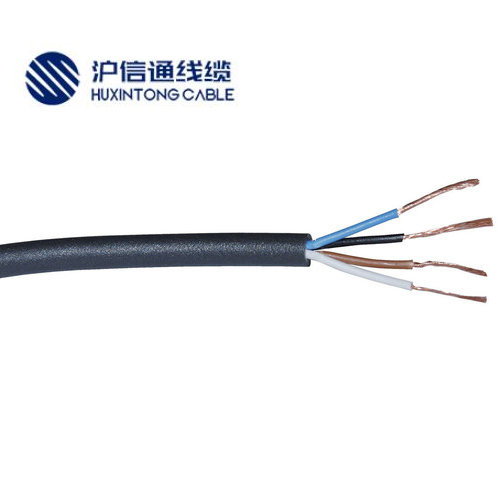

HXT pur unshielded industrial sensor cable: it is used to assist the sensor to monitor and control the data in the production process and meet the actual production needs. It is the primary link to realize automatic detection and automatic control. The product can be used in industrial production, environmental protection, resource investigation and other fields, and is suitable for high flexibility applications.

• 导体

  多股裸铜导体

• 绝缘

  聚氯乙烯

• 芯线颜色

  三芯：蓝、棕、黑

  四芯：蓝、棕、黑、白

  五芯：蓝、棕、黑、白、黄绿

• 外护套

  聚氨酯

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  Stranded bare copper conductor

• Insulation

  PVC

• Core identification

  Three core: blue, brown and black

  Four core: blue, brown, black and white

  Five core: blue, brown, black, white, yellow and green

• Sheath

  PUR

• Outer sheath colour

  Grey，Customized according to customer requirements

• 额定电压

  300V

• 绝缘电阻

  ≥20MΩ.km

• 温度范围

  -40℃ 至+90℃

• 阻燃标准

  IEC 60332-1-2

• 弯曲半径

  固定应用：4D

  偶尔移动：10D（500万次以上）

• 特性

  耐磨

  耐油

  耐水解

• Technical Parameters

• Rated voltage

  300V

• insulation resistance

  ≥20MΩ.km

• Temperature range

  -40 ℃ to + 90 ℃

• Flame retardant standard

  IEC 60332-1-2

• Bending radius

  Fixed application: 4D

  Occasional movement: 10d (more than 5 million times)

• Characteristic

  wear-resisting

  Oil resistance

  Hydrolysis resistance
