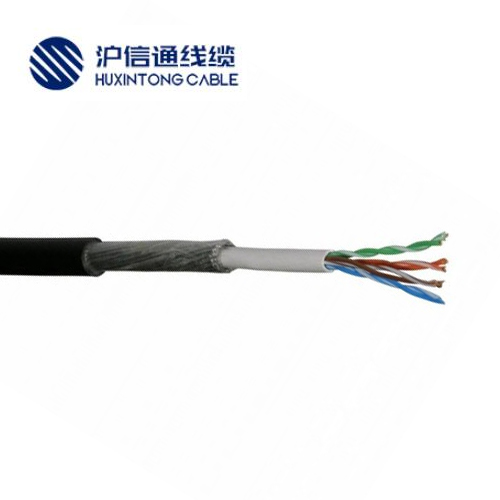

HXT flame retardant B1 low smoke halogen-free network cable cat5ef / UTP: low smoke halogen-free shielded super class V network cable has excellent and stable conductivity, and has passed the test of fluke in relevant standards. The flame retardant meets B1.
导体
SF/UTP 4x2xAWG 24/1 PVC
导体直径
0.5mm±0.004/1 7/0.19mm±0.004
绝缘
聚烯烃
芯线颜色
白蓝色/蓝色，白橙色/橙色，白绿色/绿色，白棕色/棕色
绕包
聚酯薄膜
总屏蔽1
铝塑复合薄膜
总屏蔽2
铜编织屏蔽
外护套
低烟无卤外护套
总外径
6.2 mm±0.5
外护套颜色
灰色 （可根据客户要求定制）
Structure
Conductor
SF/UTP 4x2xAWG 24/1 PVC
Conductor diameter
0.5mm±0.004/1 7/0.19mm±0.004
Insulation
PO
Core identification
whbu/bu, whog/og, whgn/gn, whbn/bn
Wrapping layer
Polyester film
Screen 1 over stranding
Aluminum plastic composite film
Screen 2 over stranding
Copper braided shield
Sheath
LSZH
Outer diameter
6.2 mm±0.5
Outer sheath colour
Grey，Customized according to customer requirements
特性阻抗
100 Ohm ± 15 Ohm / 1-100 MHz
100 Ohm ± 20 Ohm / 101-155 MHz
回路电阻
190 Ohm/km
温度范围
-15℃ 至+70℃
阻燃标准
B1级
生产标准
符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, Category 5e
Technical Parameters
characteristic impedance
100 Ohm ± 15 Ohm / 1-100 MHz
100 Ohm ± 20 Ohm / 101-155 MHz
Loop resistance
190 Ohm/km
Temperature range
-15 ℃ to + 70 ℃
Flame retardant standard
Class B1
Production standard
In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, category 5e
