HXT UL20276美标PVC传感器电缆（28AWG/0.08平方）：该产品主要适用于电子设备的机内与机外配线，高密度高电导率材料组成的网状屏蔽层，可确保电缆拥有较强的抗干扰能力。可作为测量、检测和控制用线，可用于成套设备、暖气、空调系统、冷冻设备、办公自动设备以及数据处理系统等。

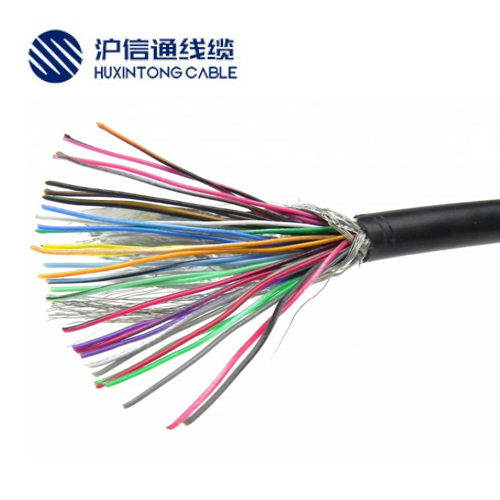

HXT ul20276 American Standard PVC sensor cable: This product is mainly applicable to the internal and external wiring of electronic equipment. The mesh shielding layer composed of high-density and high conductivity materials can ensure that the cable has strong anti-interference ability. It can be used as a line for measurement, detection and control, and can be used for complete sets of equipment, heating, air conditioning system, refrigeration equipment, office automation equipment and data processing system.

• 导体

  裸铜、镀锡铜，单根或多根绞合导体，符合UL758标准要求

• 绝缘

  特殊PVC绝缘料，符合UL758标准要求

• 屏蔽材质

  镀锡铜丝编织屏蔽，覆盖率≥80%

• 外护套

  特殊PVC护套料，符合UL758标准要求

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  Bare copper, tinned copper, single or multiple stranded conductors, in accordance with UL758

• Insulation

  Special PVC insulation, in accordance with UL758 standard requirements

• Shielding material

  Tinned copper wire braided shield, coverage rate ≥80%

• Sheath

  Special PVC sheath, in accordance with UL758 standard requirements

• Outer sheath colour

  Grey，Customized according to customer requirements

• 额定电压

  30V

• 额定温度

  80度

• 阻燃标准

  CSA FT1及UL VW-1

• 特性

  UL758标准

  阻燃性


  抗电磁干扰

  环保符合ROHS

• Technical Parameters

• Rated voltage

  30V

• Operating temperature

  80℃

• Flame retardant standard

  CSA FT1 and UL VW-1

• Characteristic

  UL758 standard

  Flame retardancy

  Anti electromagnetic interference

  Environmental compliance with RoHS
