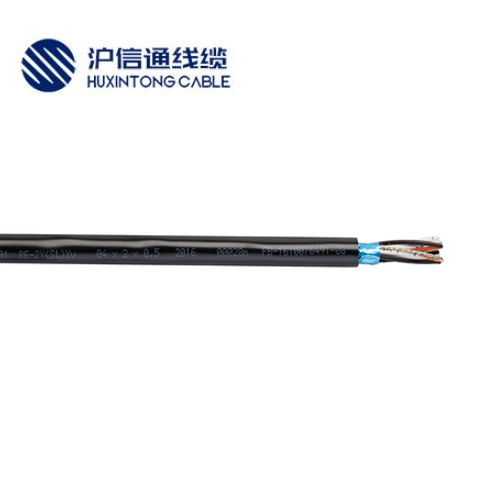

HXT CE certified re-2y (st) YV computer instrument cable: suitable for measurement, regulation and control engineering; In electrical aspect, it is used for modern computer systems that need to process a large amount of data, such as high capacitance computer systems in waste incineration plants or sewage treatment plants; These cables are suitable for fixed installation in dry and humid rooms. If equipped with black outer sheath, they can also be used outdoors; Since the nominal minimum average wall thickness of the reinforced outer sheath increases to at least 1.8 mm, it is suitable for the application of the preferred reinforced outer sheath.
导体
细裸铜丝绞合导体
绝缘
聚乙烯绝缘料
芯线结构
芯线两两成对绞合
屏蔽
铝箔绕包，铝塑复合薄膜静态屏蔽，带镀锡排扰线
外护套
特殊PVC护套料
外护套颜色
蓝色 （可根据客户要求定制）
Structure
Conductor
Stranded fine bare copper wire conductors
Insulation
Polyethylene insulating material
Core structure
Wires twisted in pairs
Shield
Aluminum foil wrapping, aluminum-plastic composite film static shielding, with tinned exhaust wire
Sheath
Special PVC sheath
Outer sheath colour
BLue，Customized according to customer requirements
额定电压
300V
工作温度
偶尔移动：-5°C 至 +50°C
固定安装：-40°C 至 +80°C
阻燃标准
IEC60332-1-2
特性
环保符合RoHS指令
阻燃性符合EN60332-1-2
铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化
对绞（TP）结构可使电路去耦（串音效果）
Technical Parameters
Rated voltage
300V
Working temperature
Occasional movement: - 5 ° C to + 50 ° C
Fixed installation: - 40 ° C to + 80 ° C
Flame retardant standard
IEC60332-1-2
Characteristic.
Environmental protection complies with ROHS directive
Flame retardancy conforms to en60332-1-2
Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference
Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
