- HXT-5P-M12MR/2,0-E20 - 1410908传感器电缆/执行器电缆：5-芯，PVC，灰色 RAL 7001，插头 弯头 M12，编码: A，与 端自由出线，电缆长度: 2 m

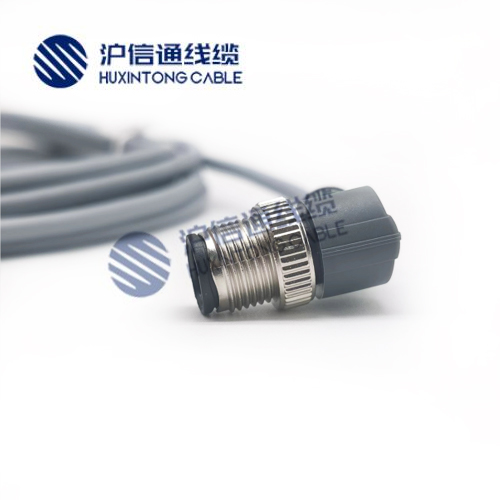

-Hxt-5p-m12mr / 2,0-e20 - 1410908 sensor cable / actuator cable: 5-core, PVC, gray ral 7001, plug elbow M12, code: A, free outgoing from the end, cable length: 2m

• 电缆类型

  PVC

• 导体材料

  无氧铜丝

• 规格

  5*0.25mm2

• 电缆外径

  5.0±0.2mm

• 绝缘材质

  聚氯乙烯

• 外护套材质

  聚氯乙烯

• 额定电压

  300V

• 温度范围

  -25度至80度

标准/规范

• M12针式插头连接器

• 绝缘电阻

  ≥100MΩ

• 材料接触表面

  Ni/Au

• 接触件载体材料

  TPU GF

• 夹具本体材料

  TPU，阻燃性高，具自熄灭性质

• 螺圈材料

  锌铸，镀镍

• 密封材料

  NBR

• 温度范围

  -25度至90度

• Cable type

  PVC

• Conductor material

  Oxygen free copper wire

• Specifications

  5*0.25mm2

• Cable outer diameter

  5.0±0.2mm

• Insulation material

  PVC

• Outer sheath material

  PVC

• Rated voltage

  300V

• Temperature range

  -25 degrees to 80 degrees

Standards / specifications

• M12 pin plug connector

• insulation resistance

  ≥100MΩ

• Material contact surface

  Ni/Au

  Contact carrier material

• TPU GF

• Fixture body material

  TPU has high flame retardancy and self extinguishing property

• Coil material

  Zinc casting, nickel plating

• Sealing material

  NBR

• Temperature range

  -25 degrees to 90 degrees
