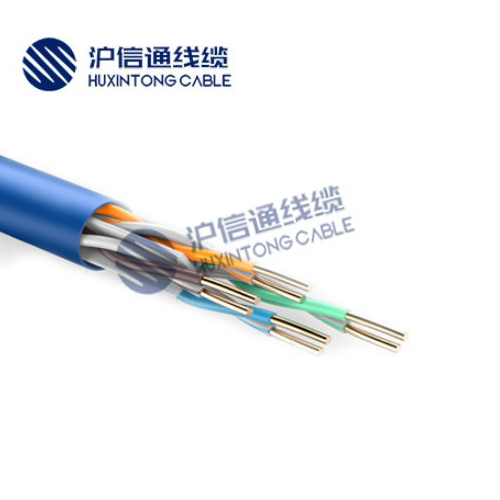

HXT CAT6A耐高温180度网线（硅橡胶）：CAT6A硅橡胶耐高温网线适用于高温条件下网络视频监控信号传输连接线。如钢厂锅炉，航天航空，国防科技，冶金化工，电力炼油，船舶道路等高温领域及车辆制造，食品机械，照明器具，烤房烘道等。

HXT cat6a high temperature 180 degree network cable (silicone rubber): CAT6A silicone rubber high temperature network cable is suitable for network video monitoring signal transmission connection under high temperature conditions. Such as steel plant boiler, aerospace, national defense science and technology, metallurgy and chemical industry, electric power, oil refining, ship road and other high-temperature fields and vehicle manufacturing, food machinery, lighting appliances, baking oven, etc.

• 导体

  4x2x24AWG

• 导体直径

  0.5mm±0.004/1      7/0.19mm±0.004

• 绝缘

  聚四氟乙烯

• 芯线颜色

  白蓝色/蓝色，白橙色/橙色，白绿色/绿色，白棕色/棕色

• 填充材料

  耐高温填充材质抗拉

• 总屏蔽

  铜编织屏蔽

• 外护套

  硅橡胶外护套

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  4x2x24AWG

• Conductor diameter

  0.5mm±0.004/1      7/0.19mm±0.004

• Insulation

  Poly tetra fluoroethylene

• Core identification

  whbu/bu, whog/og, whgn/gn, whbn/bn

• Filling material

  High temperature resistant filler material tensile

• Screen

  Copper braided shield

• Sheath

  Silicone rubber outer sheath

• Outer sheath colour

  Grey，Customized according to customer requirements

• 特性阻抗

  100 Ohm ± 15 Ohm / 1-100 MHz

• 温度范围

  -40℃ 至+180℃

• 阻燃标准

  C级

• 特性

  耐低温-40度

  耐高温-180度

  阻燃

  防水

  耐腐蚀

  耐老化

Technical Parameters

• characteristic impedance

  100 Ohm ± 15 Ohm / 1-100 MHz

• Temperature range

  -40 ℃ to + 180 ℃

• Flame retardant standard

  Class C


• characteristic

  Low temperature resistance - 40 ℃

  High temperature resistance - 180 ℃

  Flame retardant

  waterproof

  Corrosion resistance

  Aging resistance
