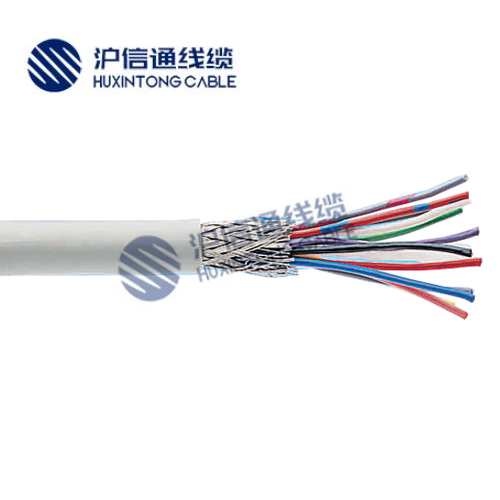

HXT Li12YC11Y拖链数据电缆：高柔性和低容量数据线，可在对 EMC 有特殊要求的极端条件下连续移动使用。该电缆不含卤素、阻燃、耐水解和微生物，并且在很大程度上耐油。

HXT li12yc11y drag chain data cable: high flexibility and low capacity data cable, which can be used continuously under extreme conditions with special requirements for EMC. The cable is halogen-free, flame retardant, resistant to hydrolysis and microorganisms, and resistant to oil to a great extent.

• 导体

  裸铜，多根绞合导体

• 绝缘

  热塑性弹性体

• 芯线标识

  采用不同颜色标识，可设置有绿/黄接地线

• 屏蔽

  镀锡铜丝编织屏蔽，覆盖率≥85%

• 外护套

  PUR护套料

• 外护套颜色

  黑色 （可根据客户要求定制）

Structure

• Conductor

  Bare copper, multiple stranded conductors

• Insulation

  Thermoplastic elastomer

• Core identification

  Marked in different colors, with protective greenyellow conductor

• Shield

  Tinned copper wire braided shield, coverage rate ≥85%

• Sheath

  PUR sheath

• Outer sheath colour

  Black，Customized according to customer requirements

• 额定电压

  300V

• 额定温度

  -40℃至80℃

• 阻燃标准

  IEC60332-1-2

• 特性

  抗干扰

  低衰减

  环保符合RoHS指令

  阻燃性符合IEC60332-1-2

  耐油

  耐酸碱

  耐磨

  耐寒

  耐候

• Technical Parameters

• Rated voltage

  300V

• Operating temperature

  -40℃—80℃

• Flame retardant standard

  IEC60332-1-2

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC60332-1-2

  Low attenuation

  Anti-interference

  Oil-resistance

  Acid and alkali resistance

  Abrasion resistance

  Cold-resistant

  Weather resistant
