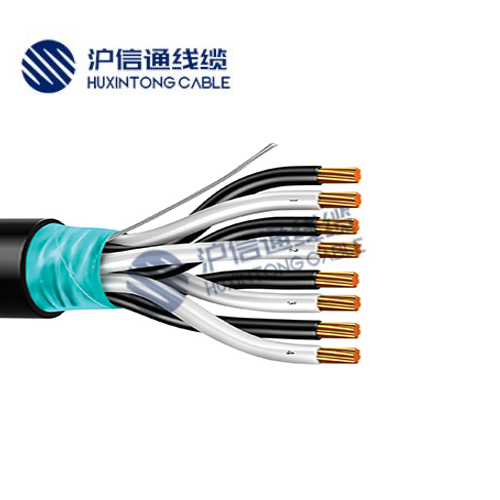

HXT 300/500V/CU / PVC / OS / PVC仪表电缆：CU/PVC/OS/PVC，成对和三线，PVC绝缘，整体铝箔屏蔽，PVC护套电缆，300/500V，BS EN50288-7

HXT 300 / 500V / Cu / PVC / OS / PVC instrument cable: Cu / PVC / OS / PVC, paired and three wire, PVC insulated, overall aluminum foil shielding, PVC sheathed cable, 300 / 500V, BS en50288-7

• 导体

  细裸铜丝绞合导体

• 绝缘

  聚氯乙烯绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽

  铝/聚酯胶带，带有镀锡铜屏蔽线0.5mm2（7/0.3mm）（OS）

• 外护套

  聚氯乙烯护套料

• 外护套颜色

  黑色

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  PVC insulating material

• Core structure

  Wires twisted in pairs

• Shield

  Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

• Sheath

  PVC sheath

• Outer sheath colour

  Black

• 额定电压

  300/500V

• 工作温度

  -15°C 至 +70°C

• 阻燃标准

IEC60332-3

• 特性

环保符合RoHS指令

阻燃性符合IEC/EN60332-3

铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300/500V

• Working temperature

  - 15 ° C to + 70° C

• Flame retardant standard

  IEC60332-3

• Characteristic

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC/EN60332-3

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
