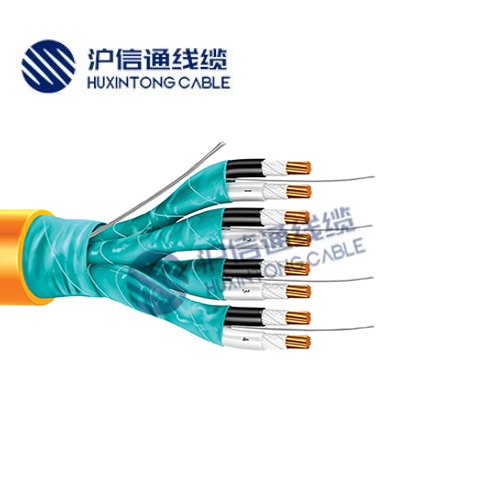

HXT 300/500V/CU / MGT / XLPE / IS / OS / LSZH低烟无卤仪表电缆：FR-XIOL、CU/MGT/XLPE/IS/OS/LSZH、成对和三元组、云母带、XLPE绝缘、单独铝箔屏蔽、整体铝箔屏蔽，低烟无卤护套电缆，300/500V，BS EN50288-7

HXT 300 / 500V / Cu / Mgt / XLPE / is / OS / LSZH low smoke halogen-free instrument cable: fr-xiol, Cu / Mgt / XLPE / is / OS / LSZH, pair and triple, mica tape, XLPE insulation, separate aluminum foil shielding, overall aluminum foil shielding, low smoke halogen-free sheathed cable, 300 / 500V, BS en50288-7

• 导体

  细裸铜丝绞合导体

• 防火层

  云母带

• 绝缘

  交联聚乙烯绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽1

  铝/聚酯胶带，带有镀锡铜排流线0.5mm2（7/0.3mm）（IS）

• 屏蔽2

  铝/聚酯胶带，带有镀锡铜屏蔽线0.5mm2（7/0.3mm）（OS）

• 外护套

  低烟无卤护套料

• 外护套颜色

  橙色或蓝色

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  XLPE insulating material

• Fire Barrier:

  Mica Tape (MGT)

• Core structure

  Wires twisted in pairs

• Shield 1

  Aluminum / polyester tape with tinned copper drain wire 0.5mm2 (7 / 0.3mm) (is)

• Shield 2

  Aluminum / polyester tape with tinned copper shield wire 0.5mm2 (7 / 0.3mm) (OS)

• Sheath

  LSZH sheath

• Outer sheath colour

  Orange/Blue


• 额定电压

  300/500V

• 工作温度

  -40°C 至 +125°C

• 阻燃标准

  IEC60332-3-22，BS EN60332-3-22

• 特性

  EN 61034-1+2 / IEC 61034-1+2

  IEC 60754-2

  环保符合RoHS指令

  阻燃性符合IEC60332-3-22，BS EN60332-3-22

  铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

  对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300/500V

• Working temperature

  - 40 ° C to + 125 ° C

• Flame retardant standard

  IEC60332-3-22，BS EN60332-3-22

• Characteristic

  EN 61034-1+2 / IEC 61034-1+2

  IEC 60754-2

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC60332-3-22，BS EN60332-3-22

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
