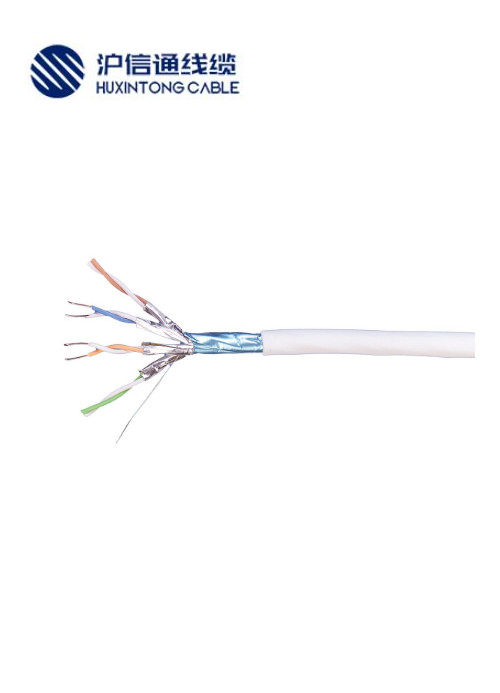

HXT CAT6A F/FTP LSZH低烟无卤网线：主要用于终端密度非常高的场合，如第三方区域内的办公室，行政楼，新社区楼等的楼层布线。

HXT CAT6A F/FTP LSZH low smoke halogen-free network cable is mainly used in occasions with very high terminal density, such as floor wiring of offices, administrative buildings, new community buildings, etc. in the third-party area.

• 导体

  实心裸铜线

• 绝缘

  聚乙烯

• 芯线颜色

  1-白蓝色/蓝色，2-白橙色/橙色，3-白绿色/绿色，4-白棕色/棕色

• 屏蔽材质

  铝箔屏蔽


• 外护套

  低烟无卤

• 外径

  7.2mm±0.3

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  Solid OFC annealed bare copper wire

• Insulation

  PE

• Core identification

  1-white-blue/blue, 2 –white-orange/orange, 3 –white-green/green, 4 –white-brown/brown

• Shielding material

  Aluminum foil shielding

• Sheath

  LSZH

• Outer Diameter

  7.2mm±0.3

• Outer sheath colour

  Grey，Customized according to customer requirements

• 特性阻抗

  100 ± 15 Ω

• 绝缘电阻

  ≥5GΩ.km

• 温度范围

  -15℃ 至+70℃

• 阻燃标准

  IEC 60332-1-2

• 生产标准

  符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, IEC61156-5




Technical Parameters

• characteristic impedance

  100 ± 15 Ω

• insulation resistance

  ≥5GΩ.km

• Temperature range

  -15 ℃ to + 70 ℃

• Flame retardant standard

  IEC 60332-1-2

• Production standard

  In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, IEC61156-5
