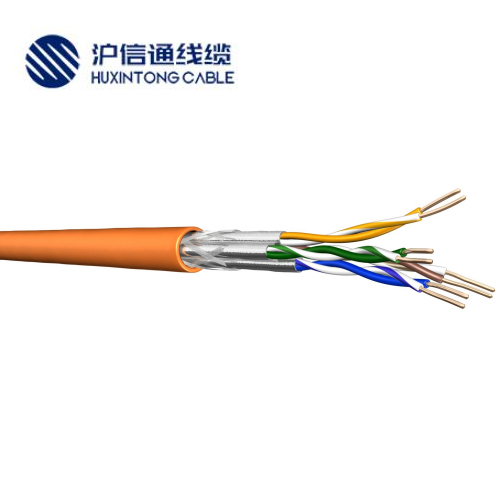

HXT CAT7A S/FTP铝箔分屏+编织总屏无卤网线适用于机器、工具、设备、装置、电器和控制柜布线系统。可敷设于干燥或潮湿的室内，具有良好的抗电磁干扰特性，可用于恶劣工业环境中的工业以太网。

HXT CAT7A S/FTP aluminum foil split screen + braided total screen halogen-free network cable  is applicable to the wiring system of machines, tools, equipment, devices, electrical appliances and control cabinets. It can be applied in a dry or humid room with good anti electromagnetic interference characteristics. It can be used for industrial Ethernet in harsh industrial environment.

• 导体

  实心裸铜线

• 绝缘

  聚乙烯

• 芯线颜色

  1-白蓝色/蓝色，2-白橙色/橙色，3-白绿色/绿色，4-白棕色/棕色

• 屏蔽材质

  S/FTP：整体铜丝编织屏蔽，对绞线表面采用铝箔绕包

• 外护套

  无卤，阻燃混合物

• 外径

  7.7mm±0.3

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

•  Conductor

  Solid OFC annealed bare copper wire

• Insulation

  PE

• Core identification

  1-white-blue/blue, 2 –white-orange/orange, 3 –white-green/green, 4 –white-brown/brown

• Shielding material

  The whole copper wire is braided and shielded, and the surface of the twisted pair is wrapped with aluminum foil

• Sheath

  Halogen free, flame retardant mixture

• Outer sheath colour

  Grey，Customized according to customer requirements

• 特性阻抗

  100 ± 15 Ω

• 绝缘电阻

  ≥5GΩ.km

• 温度范围

  -40℃ 至+90℃

• 阻燃标准

  IEC 60332-1-2

• 生产标准

  符合IEC61156-5，EN50173&ISO/IEC1180

Technical Parameters

• characteristic impedance

  100 ± 15 Ω

• insulation resistance

  ≥5GΩ.km

• Temperature range

  -40℃ to + 90 ℃

• Flame retardant standard

  IEC 60332-1-2

• Production standard

  accord with IEC61156-5，EN50173&ISO/IEC1180
