HXT PVC/CAN BUS总线可用于高柔性应用或机械和控制设施以及设备工程中，具有优异的数据和信号传输能力，PUR外护套具有耐磨，耐酸碱腐蚀，抗紫外线的特性。搭配有附加电源线，可确保每个元件的电力传输，适用于工业现场总线系统。

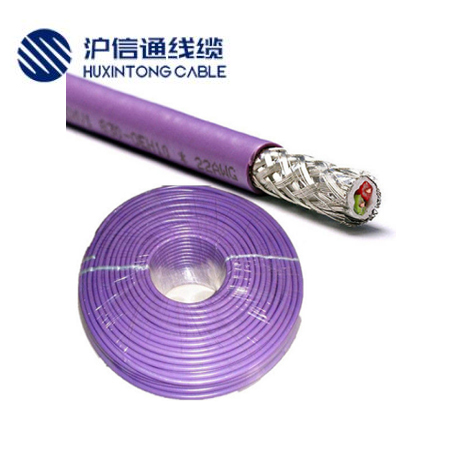

HXT PVC/CAN BUS can be used in high flexibility applications or mechanical and control facilities and equipment engineering. It has excellent data and signal transmission capacity. Pur outer sheath has the characteristics of wear resistance, acid and alkali corrosion resistance and ultraviolet resistance. It is equipped with additional power cord to ensure the power transmission of each component, which is suitable for industrial fieldbus system.

• 导体

  绞合裸铜

• 绝缘

  发泡聚乙烯

• 屏蔽材质

  镀锡铜屏蔽


• 外护套

  聚氨酯

• 外径

  7.2mm±0.3（2*2*0.22mm2）

• 外护套颜色

  紫色 （可根据客户要求定制）

Structure

•  Conductor

   bare copper wire stranded conductor

• Insulation

  Foamed PE

• Shielding material

  Tinned copper wire braided shield

• Sheath

  PUR

• Outer Diameter

  7.2mm±0.3（2*2*0.22mm2）

• Outer sheath colour

  Purple，Customized according to customer requirements

• 额定电压

  300V

• 特性阻抗

  120 ± 15 Ω

• 温度范围

  -40℃ 至+90℃

• 弯曲半径

  固定应用：10*D

  移动应用：500万次以上

• 阻燃标准

  IEC 60332-1-2

• 特性

  具有较好的抗外部电子干扰能力，PUR外护套具有耐油，耐磨耐水解的特性。







Technical Parameters

• Rated voltage

300V

• characteristic impedance

  100 ± 15 Ω

• Temperature range

  -40 ℃ to + 90 ℃

• Bending radius

  Fixed application: 10* D

  Mobile applications: more than 5 million times

• Flame retardant standard

  IEC 60332-1-2

• characteristic

  It has good resistance to external electronic interference, and pur outer sheath has the characteristics of oil resistance, wear resistance and hydrolysis resistance.erformance; Suitable for fixed installation or occasional movement
