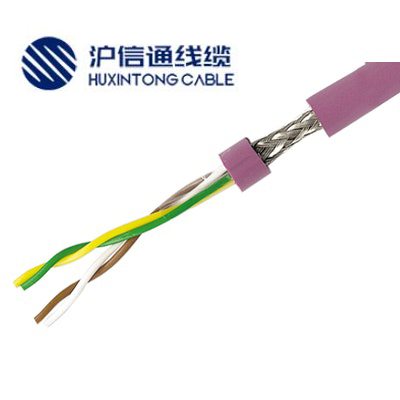

HXT PVC/CAN BUS总线可用于机械和控制设施以及设备工程中，具有优异的数据和信号传输能力。搭配有附加电源线，可确保每个元件的电力传输，适用于工业现场总线系统。

HXT PVC/CAN BUS can be used in mechanical and control facilities and equipment engineering, and has excellent data and signal transmission capacity. It is equipped with additional power cord to ensure the power transmission of each component, which is suitable for industrial fieldbus system.

• 导体

  绞合裸铜

• 绝缘

  发泡聚乙烯

• 屏蔽材质

  镀锡铜屏蔽


• 外护套

  聚氯乙烯

• 外径

  7.2mm±0.3（2*2*0.22mm2）

• 外护套颜色

  紫色 （可根据客户要求定制）

Structure

•  Conductor

   bare copper wire stranded conductor

• Insulation

  Foamed PE

• Shielding material

  Tinned copper wire braided shield

• Sheath

  PVC

• Outer Diameter

  7.2mm±0.3（2*2*0.22mm2）

• Outer sheath colour

  Purple，Customized according to customer requirements

• 特性阻抗

  100 ± 15 Ω

• 绝缘电阻

  ≤60Ω.km

• 温度范围

  -15℃ 至+70℃

• 弯曲半径

  固定应用：8*D

• 阻燃标准

  IEC 60332-1-2

• 特性

  具有较好的抗外部电子干扰能力，稳定的传输性能；适用于固定安装或偶尔移动







Technical Parameters

• characteristic impedance

  100 ± 15 Ω

• insulation resistance

  ≤60Ω.km

• Temperature range

  -15 ℃ to + 70 ℃

• Bending radius

  Fixed application: 8 * D

• Flame retardant standard

  IEC 60332-1-2

• characteristic

  It has good anti external electronic interference ability and stable transmission performance; Suitable for fixed installation or occasional movement
