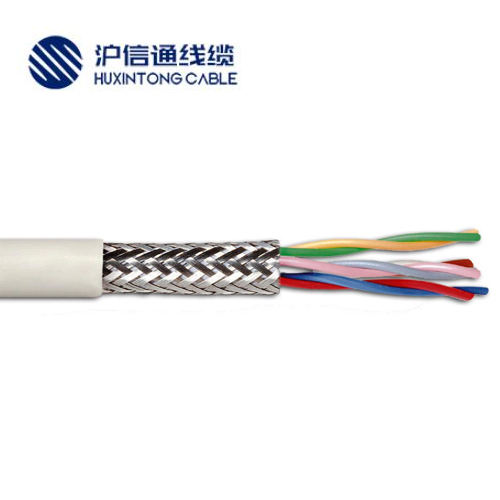

HXT CE certified lihch-tp halogen-free insulated and sheathed twisted pair shielded data cable: it is widely used for fixed installation or flexible application in a movable dry environment with low mechanical stress, no mechanical tension or load and non power control. High conductivity shielding material can effectively prevent the interference of external strong electric field and ensure the integrity and stability of data transmission. It is commonly used for signal connection, measurement, control, call and two-way intercom system, clock device, electronic weighing equipment and office electrical equipment. Cables with halogen-free flame retardant materials will not release toxic and harmful gases in case of fire. It is usually installed in public buildings, laboratories, trading and transportation centers, but it is not suitable for outdoor use.
导体
细裸铜丝绞合导体，符合EN60228标准中第5类导体要求
绝缘
特殊低烟无卤绝缘料，符合EN50363-7标准要求
屏蔽
镀锡铜丝编织屏蔽，覆盖率≥80%
芯线标识
采用不同颜色标识
分色注条
分色打点
外护套
特殊低烟无卤护套料，符合EN50363-8标准要求
外护套颜色
灰色 （可根据客户要求定制）
Structure
Conductor
Stranded fine bare copper wire conductors , in accordance with EN60228, Class 5
Insulation
Special low smoke and halogen free insulation, in accordance with EN50363-7
