HXT CE认证LI2YCY屏蔽数据电缆：广泛适用于固定安装或灵活应用于低机械应力，无机械拉力或负荷，非动力控制的可移动的干燥或潮湿环境中，但不适合露天使用。在工具制造和机械工业中的计算机系统，电子控制设备，机床行业，电子领域，计算机系统常用作控制和信号电缆。具有良好的电场屏蔽能力。

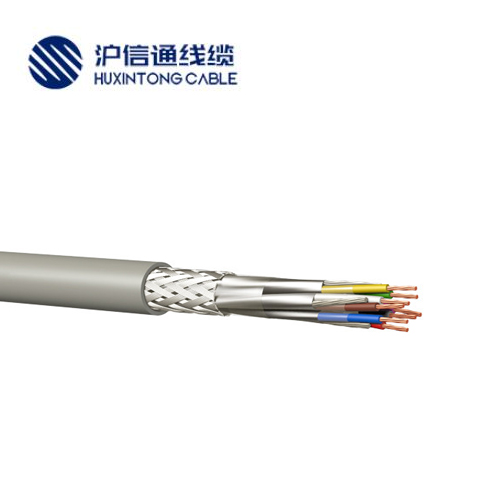

HXT CE certified li2ycy shielded data cable: widely suitable for fixed installation or flexible application in low mechanical stress, no mechanical tension or load, non power controlled movable dry or humid environment, but not suitable for outdoor use. Computer systems are often used as control and signal cables in tool manufacturing and mechanical industry, electronic control equipment, machine tool industry and electronic field. It has good electric field shielding ability.

• 导体

  细裸铜丝绞合导体，符合EN60228标准中第5类导体要求

• 绝缘

  特殊聚乙烯绝缘料，符合EN50363-7标准要求

• 芯线标识

  采用不同颜色标识

  分色注条

  分色打点

• 屏蔽

  镀锡铜丝编织屏蔽，覆盖率≥80%

• 外护套

  特殊PVC护套料，符合EN50363-4-1标准要求

• 外护套颜色

  灰色 （可根据客户要求定制）

Structure

• Conductor

  Stranded fine bare copper wire conductors , in accordance with EN60228, Class 5

• Insulation

  Special PE insulation, in accordance with EN50363-7

• Core identification

  Marked in different colors

  Separation note

  Color separation

• Shield

  Tinned copper wire braided shield, coverage rate ≥80%

• Sheath

  Special PVC sheath, in accordance with EN50363-4-1

• Outer sheath colour

  Grey，Customized according to customer requirements

• 额定电压

  300V

• 额定温度

  -5℃至+70℃

• 阻燃标准

  IEC60332-1-2

• 特性

  抗干扰

  低衰减

  环保符合RoHS指令

  阻燃性符合EN60332-1-2

• Technical Parameters

• Rated voltage

  300V

• Operating temperature

  -5℃ to +70℃

• Flame retardant standard

  IEC60332-1-2

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to en60332-1-2

  Low attenuation

  Anti-interference
