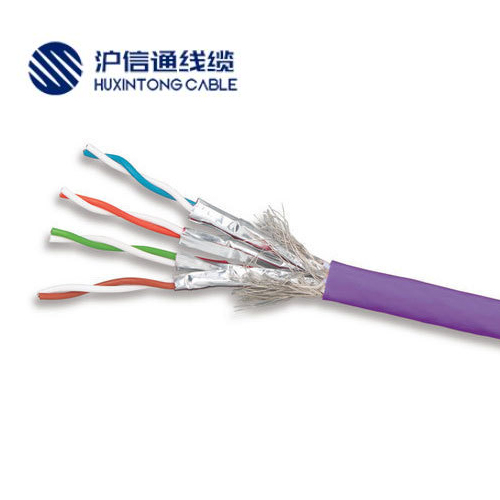

HXT CAT6 SF/FTP耐弯曲工业拖链网线（聚氨酯/低烟无卤）：作为高速数据电缆可应用于云计算中心、大型数据机房、办公室、住宅区、厂房等建筑的综合布线系统。屏蔽型电缆特别适用于工业环境中机器、设备、仪器、控制柜的布线，适合有限的柔性应用。

HXT CAT6 SF / ftp industrial drag chain cable (polyurethane / low smoke halogen-free): as a high-speed data cable, it can be applied to the generic cabling system of cloud computing center, large data room, office, residential area, plant and other buildings. Shielded cable is especially suitable for the wiring of machines, equipment, instruments and control cabinets in industrial environment, and is suitable for limited flexible applications.

• 导体

  裸铜线

• 绝缘

  PE

• 芯线颜色

  1-白蓝色/蓝色，2-白橙色/橙色，3-白绿色/绿色，4-白棕色/棕色

• 屏蔽材质

  U/UTP：无屏蔽

  F/UTP：总屏蔽

  SF/UTP：铝箔屏蔽+镀锡铜编织


• 外护套

  聚氨酯（耐油，耐磨损，符合ROHS指令，阻燃）

  低烟无卤（IEC 60754；IEC 61034）

• 外护套颜色

  紫色 （可根据客户要求定制）

Structure

•  Conductor

  Bare copper conductor

• Insulation

  PE

• Core identification

  1-white-blue/blue, 2 –white-orange/orange, 3 –white-green/green, 4 –white-brown/brown

• Shielding material

  U / UTP: unshielded

  F / UTP: total shielding

  SF / UTP: aluminum foil shielding + tinned copper braiding

• Sheath

  PUR(oil resistant, abrasion resistant, RoHS compliant, flame retardant)

  LSZH（IEC 60754；IEC 61034）

• Outer sheath colour

  Purple，Customized according to customer requirements

• 特性阻抗

  100 ± 15 Ω@100MHz

• 绝缘电阻

  ≥5GΩ.km

• 温度范围

  -40℃ 至+90℃

• 阻燃标准

  IEC 60332-1-2

• 生产标准

  符合ISO/IEC 11801, 符合 EN 50173, 符合EIA/TIA 568-A, IEC61156-5

• Technical Parameters

• characteristic impedance

  100 ± 15 Ω@100MHz

• insulation resistance

  ≥5GΩ.km

• Temperature range

  -40 ℃ to + 90 ℃

• Flame retardant standard

  IEC 60332-1-2

• Production standard

  In accordance with ISO / IEC 11801, en 50173, EIA / TIA 568-a, IEC61156-5
