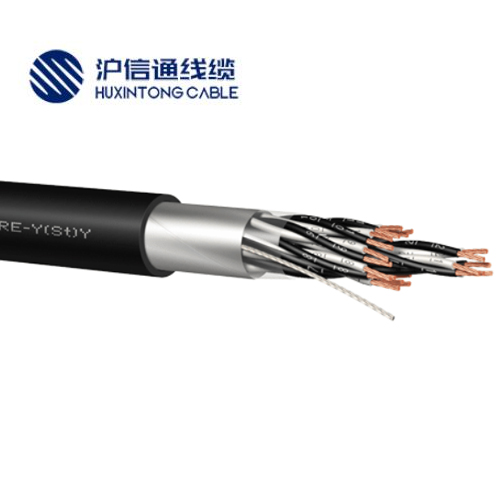

HXT RE-Y(St)Y PiMF仪表电缆（本质安全系统）：用于石油勘探、水泥、造纸、钢铁、发电等行业的通信和仪表，以及石化厂和热电厂等危险区域的本质安全系统，以监控过程自动化应用中的测量设备。

HXT RE-Y (st) y pimf instrument cable (intrinsic safety system): used for communication and instruments in petroleum exploration, cement, papermaking, steel, power generation and other industries, as well as intrinsic safety systems in hazardous areas such as petrochemical plants and thermal power plants, so as to monitor measuring equipment in process automation applications.

• 导体

  细裸铜丝绞合导体，符合 BS EN 60228标准

• 绝缘

  聚氯乙烯绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽

  铝箔绕包，铝塑复合薄膜静态屏蔽，带镀锡排扰线

• 外护套

  特殊PVC护套料

• 外护套颜色

  黑色，蓝色表示本质安全系统

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  Pvc insulating material

• Core structure

  Wires twisted in pairs

• Shield

  Aluminum foil wrapping, aluminum-plastic composite film static shielding, with tinned exhaust wire

• Sheath

  Special PVC sheath

• Outer sheath colour

  Black. Blue indicates intrinsically safe system

• 额定电压

  300V

• 工作温度

  固定安装：-10°C 至 +70°C

• 阻燃标准

  IEC60332-1-2

• 特性

  环保符合RoHS指令

  阻燃性符合EN60332-1-2

  铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

  对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300V

• Working temperature

• Fixed installation: - 10 ° C to + 70 ° C

• Flame retardant standard

  IEC60332-1-2

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to en60332-1-2

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
