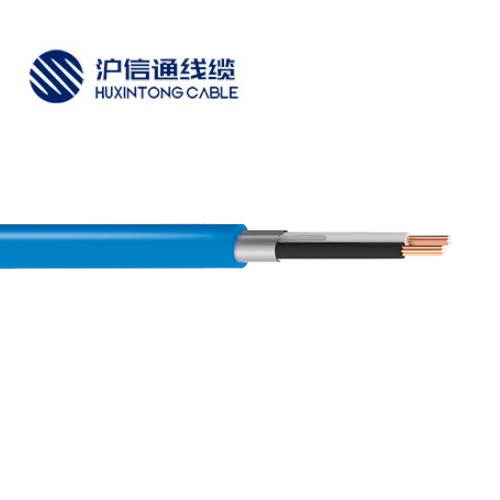

HXT RE-2X(st)Y仪表电缆EN 50288-7：这些电缆设计用于连接电气仪表；电路并在内部和周围提供通信服务；工艺装置（如石化工业等）。不适用于直接掩埋应用。

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications.

• 导体

  细裸铜丝绞合导体，符合 BS EN 60228标准

• 绝缘

  交联聚乙烯绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽

  铝箔绕包，铝塑复合薄膜静态屏蔽，带镀锡排扰线

• 外护套

  特殊PVC护套料

• 外护套颜色

  黑色，蓝色表示本质安全系统

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  XLPE insulating material

• Core structure

  Wires twisted in pairs

• Shield

  Aluminum foil wrapping, aluminum-plastic composite film static shielding, with tinned exhaust wire

• Sheath

  Special PVC sheath

• Outer sheath colour

  Black. Blue indicates intrinsically safe system

• 额定电压

  300V

• 工作温度

  固定安装：-10°C 至 +70°C

• 阻燃标准

  IEC/EN60332-1-2

  IEC/EN 60332-3-24

• 特性

  环保符合RoHS指令

  阻燃性符合IEC/EN60332-1-2，IEC/EN 60332-3-24

  铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

  对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300V

• Working temperature

  Fixed installation: - 10 ° C to + 70 ° C

• Flame retardant standard

  IEC/EN60332-1-2

  IEC/EN 60332-3-24

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC/EN60332-1-2，IEC/EN 60332-3-24

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
