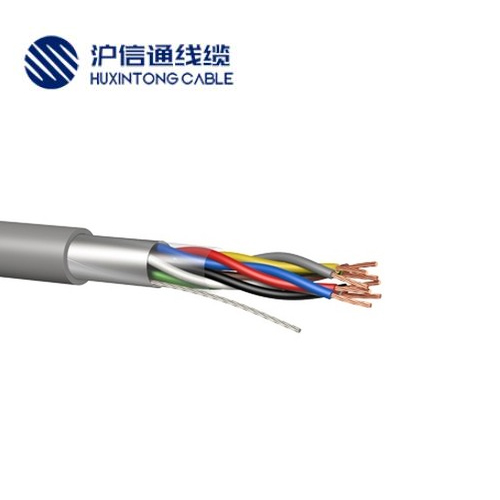

HXT RD-Y(ST)Y屏蔽数据传输电缆：RD-Y（ST）Y 是用于监控系统和控制单元等应用的数据传输电缆；测量、控制和法规技术，以及工厂和工业设备的控制机房中；适用于频率高达 10 kHz 的模拟和数字信号的传输，为密封环境里的固定安装而设计。

HXT rd-y (st) y shielded data transmission cable: rd-y (st) y is a data transmission cable used for monitoring system, control unit and other applications; Measurement, control and regulatory technology, as well as the control room of plant and industrial equipment; It is suitable for the transmission of analog and digital signals with frequencies up to 10 kHz. It is designed for fixed installation in a sealed environment.

• 导体

  细裸铜丝绞合导体，符合 BS EN 60228标准

• 绝缘

  聚氯乙烯绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽

  铝塑复合薄膜静态屏蔽，带镀锡排扰线

• 外护套

  特殊PVC护套料

• 外护套颜色

  灰色

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  PVC insulating material

• Core structure

  Wires twisted in pairs

• Shield

  Aluminum plastic composite film static shielding with tinned drain wire

• Sheath

  Special PVC sheath

• Outer sheath colour

  Grey


• 额定电压

  300V

• 工作温度

  固定安装：-10°C 至 +70°C

• 阻燃标准

  IEC/EN60332-1-2

• 特性

  环保符合RoHS指令

  阻燃性符合IEC/EN60332-1-2

  铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

  对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300V

• Working temperature

  Fixed installation: - 10 ° C to + 70 ° C

• Flame retardant standard

  IEC/EN60332-1-2

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC/EN60332-1-2

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)
