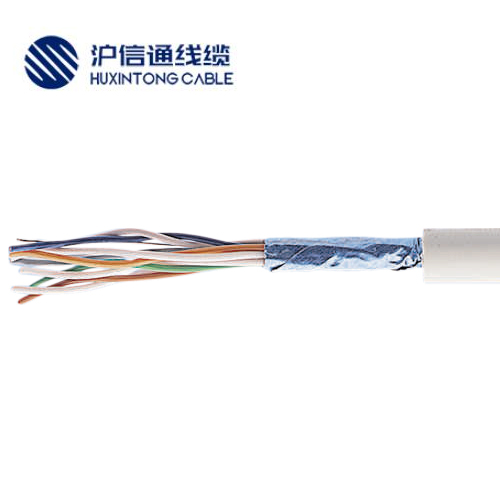

HXT RD-H(St)H无卤数据传输电缆：用于测量和控制技术，用于传输频率约为10 kHz的模拟和数字信号。短间距（0.5mm²小于50mm）和不同铺设长度的双绞线，在一个单元中产生良好的串扰衰减值。这些电缆用于建筑物内部（在露天的特殊情况下，但必须有足够的阳光防护）

HXT rd-h (st) H halogen-free data transmission cable: used for measurement and control technology and for transmitting analog and digital signals with a frequency of about 10 kHz. Short spacing (0.5mm) ² Less than 50mm) and twisted pairs with different laying lengths produce good crosstalk attenuation value in one unit. These cables are used inside the building (under special conditions in the open air, but there must be sufficient sunlight protection)

• 导体

  细裸铜丝绞合导体，符合 BS EN 60228标准

• 绝缘

  低烟无卤绝缘料

• 芯线结构

  芯线两两成对绞合

• 屏蔽

  铝塑复合薄膜静态屏蔽，带镀锡排扰线

• 外护套

  低烟无卤护套料

• 外护套颜色

  灰色

Structure

• Conductor

  Stranded fine bare copper wire conductors

• Insulation

  LSZH insulating material

• Core structure

  Wires twisted in pairs

• Shield

  Aluminum plastic composite film static shielding with tinned drain wire

• Sheath

  LSZH sheath

• Outer sheath colour

  Grey


• 额定电压

  300V

• 工作温度

  -40°C 至 +90°C

• 阻燃标准

  IEC/EN60332-1-2

• 特性

  EN 61034-1+2 / IEC 61034-1+2

  IEC 60754-2

  环保符合RoHS指令

  阻燃性符合IEC/EN60332-1-2

  铝塑复合薄膜静态屏蔽，带镀锡丝排流线，使高频电磁干扰最小化

  对绞结构可使电路去耦（串音效果）

• Technical Parameters

• Rated voltage

  300V

• Working temperature

  - 40 ° C to + 90 ° C

• Flame retardant standard

  IEC/EN60332-1-2

• Characteristic

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to IEC/EN60332-1-2

  Aluminum plastic composite film static shielding with tinned wire drainage line to minimize high-frequency electromagnetic interference

  Twisted pair (TP) structure can decouple the circuit (crosstalk effect)

  EN 61034-1+2 / IEC 61034-1+2

  IEC 60754-2
