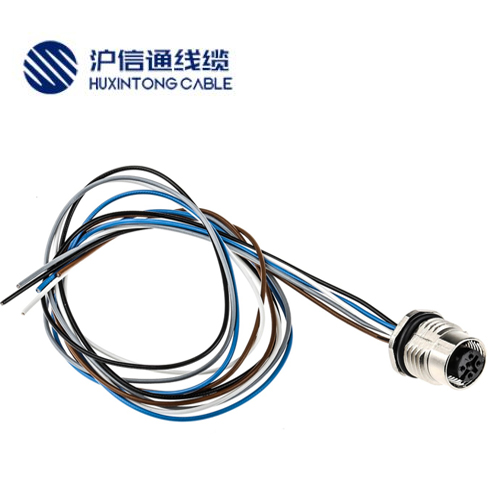

HXT-5P-10,0-E10/M12FR - 1411761传感器电缆/执行器电缆：5-芯，PUR，灰色 RAL 7001，端自由出线，与 孔式 弯头 M12，编码: A，电缆长度: 10 m

Hxt-5p-10,0-e10 / m12fr - 1411761 sensor cable / actuator cable: 5-core, PUR, gray ral 7001, free outlet at the end, with hole elbow M12, code: A, cable length: 10 m

• 电缆类型

  无卤素PUR

• 导体材料

  无氧铜丝

• 规格

  5*0.25mm2

• 绝缘材质

  聚丙烯

• 外护套材质

  聚氨酯

• 额定电压

  300V

• 温度范围

  -40度至80度

标准/规范

• M12针式插头连接器

• 绝缘电阻

  ≥100MΩ

• 材料接触表面

  Ni/Au

• 接触件载体材料

  TPU GF

• 夹具本体材料

  TPU，阻燃性高，具自熄灭性质

• 密封材料

  NBR

• 温度范围

  -25度至90度

• Cable type

  Halogen free pur

• Conductor material

  Oxygen free copper wire

• Specifications

  5*0.25mm2

• Insulation material

  PP

• Outer sheath material

  polyurethane

• Rated voltage

  300V

• Temperature range

  -40 degrees to 80 degrees

Standards / specifications

• M12 pin plug connector

• insulation resistance

  ≥100MΩ

• Material contact surface

  Ni/Au

  Contact carrier material

• TPU GF

• Fixture body material

  TPU has high flame retardancy and self extinguishing property

• Sealing material

  NBR

• Temperature range

  -25 degrees to 90 degrees
