HXT-4P-M12MS/0,6-E20/M12FS - 1410900传感器/执行器电缆：4-芯，PVC，灰色 RAL 7001，插头 直头 M12，编码: A，与 孔式 直头 M12，编码: A，电缆长度: 0.6 m

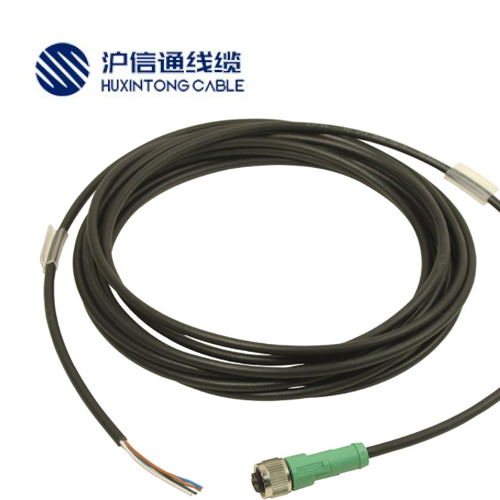

Hxt-4p-m12ms / 0,6-e20 / m12fs - 1410900 sensor / actuator cable: 4-core, PVC, gray ral 7001, plug straight head M12, code: A, and hole straight head M12, code: A, cable length: 0.6 m

• 电缆类型

  PVC

• 导体材料

  无氧铜丝

• 规格

  4*0.25mm2

• 绝缘材质

  聚氯乙烯

• 外护套材质

  聚氯乙烯

• 额定电压

  300V

• 温度范围

  -25度至80度

• 电缆外径

  4.4±0.2mm

标准/规范

• M12针式插头连接器

• 材料接触表面

  Ni/Au

• 接触件载体材料

  TPU GF

• 夹具本体材料

  TPU，阻燃性高，具自熄灭性质

• 密封材料

  NBR

• 温度范围

  -25度至90度

• Cable type

  PVC

• Conductor material

  Oxygen free copper wire

• Specifications

  4*0.25mm2

• Insulation material

  PVC

• Outer sheath material

  PVC

• Rated voltage

  300V

• Temperature range

  -25 degrees to 80 degrees

• Cable outer diameter

  4.4±0.2mm

Standards / specifications

• M12 pin plug connector

• Material contact surface

  Ni/Au

  Contact carrier material

• TPU GF

• Fixture body material

  TPU has high flame retardancy and self extinguishing property

• Sealing material

  NBR

• Temperature range

  -25 degrees to 90 degrees
