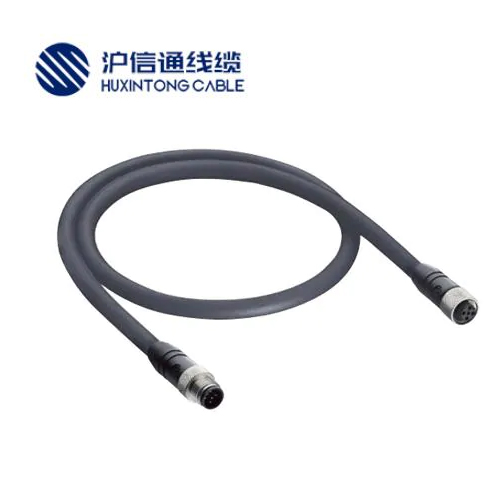

HXT-3P-10,0-E10/M12FS - 1411714传感器/执行器电缆：3-芯，PUR，灰色 RAL 7001，端自由出线，与 孔式 直头 M12，编码: A，电缆长度: 10m

Hxt-3p-10,0-e10 / m12fs - 1411714 sensor / actuator cable: 3-core, PUR, gray ral 7001, free outlet at the end, with hole straight head M12, code: A, cable length: 10M

• 电缆类型

  无卤素PUR

• 导体材料

  无氧铜丝

• 规格

  3*0.25mm2

• 绝缘材质

  聚丙烯

• 外护套材质

  聚氨酯

• 额定电压

  300V

• 温度范围

  -40度至80度

• 电缆外径

  3.8±0.2mm

• 阻燃标准

  FT2

标准/规范

• M12针式插头连接器

• 材料接触表面

  Ni/Au

• 接触件载体材料

  TPU GF

• 夹具本体材料

  TPU，阻燃性高，具自熄灭性质

• 密封材料

  NBR

• 温度范围

  -25度至90度

• Cable type

  Halogen free pur

• Conductor material

  Oxygen free copper wire

• Specifications

  3*0.25mm2

• Insulation material

  PP

• Outer sheath material

  PUR

• Rated voltage

  300V

• Temperature range

  -40 degrees to 80 degrees

• Cable outer diameter

  3.8±0.2mm

• Flame retardant standard

  FT2

Standards / specifications

• M12 pin plug connector

• Material contact surface

  Ni/Au

  Contact carrier material

• TPU GF

• Fixture body material

  TPU has high flame retardancy and self extinguishing property

• Sealing material

  NBR

• Temperature range

  -25 degrees to 90 degrees
