HXT 美标认证PVC网线UL2464：六类网线（包括细径）均通过单体测试，具备高质量和高性能，完全符合综合布线系统的要求，适用于服务器机房的布线，以及复杂的电子设备环境（干扰源多），是室内数据中心的理想解决方案。

HXT American Standard certified PVC network cable ul2464: class VI network cable (including fine diameter) has passed the monomer test, has high quality and high performance, fully meets the requirements of generic cabling system, is suitable for the wiring of server room and complex electronic equipment environment (many interference sources), and is an ideal solution for indoor data center.

• 导体

  裸铜，单根或多根绞合导体，符合UL758标准要求

• 绝缘

  特殊聚乙烯绝缘料

• 芯线标识

  1-白橙、2-橙、3-白绿、4-蓝、5-白蓝、6-绿、7-白棕、8-棕


• 屏蔽

  镀锡铜丝编织屏蔽，覆盖率≥80%

• 外护套

  特殊PVC护套料，符合UL758标准要求

• 外护套颜色

  黑色 （可根据客户要求定制）

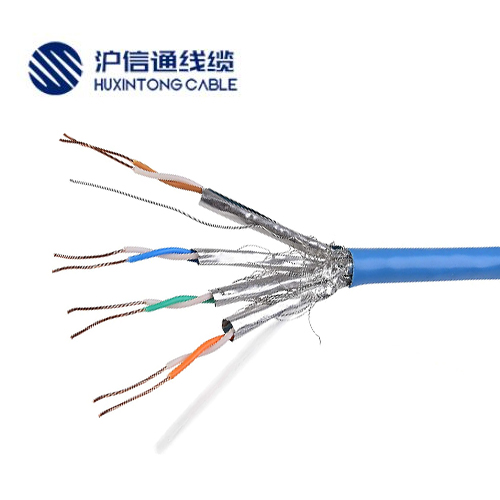

Structure

• Conductor

  Bare copper, single or multiple stranded conductors, conforming to UL758 standard

• Insulation

  Special PE insulation

• Core identification

  1-white orange, 2-orange, 3-white green, 4-blue, 5-white blue, 6-green, 7-white brown, 8-brown

• Shield

  Tinned copper wire braided shield, coverage rate ≥80%

• Sheath

  Special PVC sheath, in accordance with UL758 standard requirements

• Outer sheath colour

  Black，Customized according to customer requirements

• 额定电压

  300V

• 额定温度

  80℃

• 阻燃标准

  VW-1/FT1

• 特性

  抗干扰

  低衰减

  环保符合RoHS指令

  阻燃性符合VW-1/FT1

• Technical Parameters

• Rated voltage

  300V

• Operating temperature

  80℃

• Flame retardant standard

  VW-1/FT1

• Characteristic.

  Environmental protection complies with ROHS directive

  Flame retardancy conforms to VW-1/FT1

  Low attenuation

  Anti-interference
