HXT PRVZP—1称重传感器电缆：适用于无线电通讯和有关电子设备传输信号用的环保多芯信号电缆。

HXT prvzp-1 load cell cable: it is an environment-friendly multi-core signal cable suitable for radio communication and signal transmission of relevant electronic equipment.

• 导体

  镀锡铜铜丝绞合导体

• 绝缘

  聚乙烯


• 芯线结构

  6*0.6mm2

• 屏蔽

  镀锡铜丝编织，密度≥85%

• 外护套

  聚氯乙烯

• 绝缘外径

  2.05±0.1

• 护套外径

  9.2±0.2

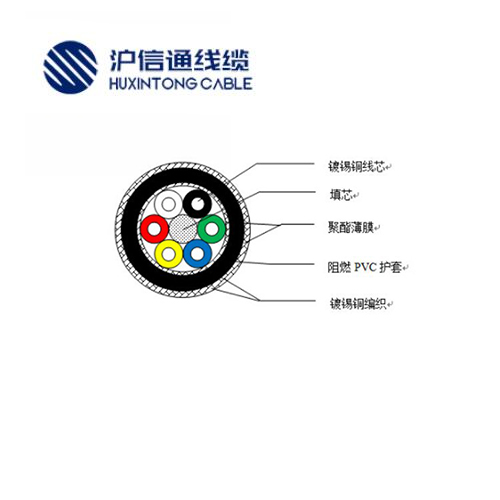

Structure

• Conductor

  Tinned copper wire stranded conductor

• Insulation

  PE


• Core structure

  6*0.6mm2

• Shield

  Tinned copper wire weaving, density ≥ 85%


• Sheath

  PVC

• Insulation outer diameter

  2.05±0.1

• Outer diameter of sheath

  9.2±0.2

• 额定电压

  300V

• 工作温度

  -20°C 至 +90°C

• 阻燃标准

  C级

• 特性

  环保符合RoHS指令




• Technical Parameters

• Rated voltage

  300V

• Working temperature

  - 20 ° C to + 90 ° C

• Flame retardant standard

  Class C

• Characteristic

  Environmental protection complies with ROHS directive
